Name: Digital Logging System Specially Designed For The Convenience Of Field Work
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Casa > produtos > Equipamento de pesquisa geofísica >

Digital Logging System Specially Designed For The Convenience Of Field Work

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Lugar de origem:

China

Marca:

RanCheng

Certificação:

CE, ISO 9001:2000

Número do modelo:

RCQ-1

Contacte-nos

Pedido Umas citações

Detalhes do produto

Saída de sinal:

Interface USB

Medição da profundidade:

0 ~ 9999,99 metros

Precisão na medição de profundidade:

melhor de 0,1%

Faixa de medição de velocidade:

0 ~ 9999 metros/hora

Precisão da medição de velocidade:

Melhor que 5%

Destacar:

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

US $ 7000-10000

Detalhes da embalagem

Pode ser enviado por um contêiner de 20 "

Tempo de entrega

10-15 dias úteis

Termos de pagamento

T/T, União Ocidental

Habilidade da fonte

100 grupos por mês

PRODUTOS CONEXOS

Vídeo

Digital Logging System Specially Designed For The Convenience Of Field Work

Obtenha o melhor preço

Vídeo

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Obtenha o melhor preço

Vídeo

Equipamento de Perfuração Geofísica para Poços de Água, Ferramenta de Sondagem de Poços, Equipamento de Sondagem de Poços, Ferramenta de Sondagem Geotécnica para Venda

Obtenha o melhor preço

Vídeo

Sistema de Medição de Resistividade Aparente e Registro de Poços de Água com Equipamento Geofísico de 300m

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

Digital Logging System Specially Designed For The Convenience Of Field Work

Product Description

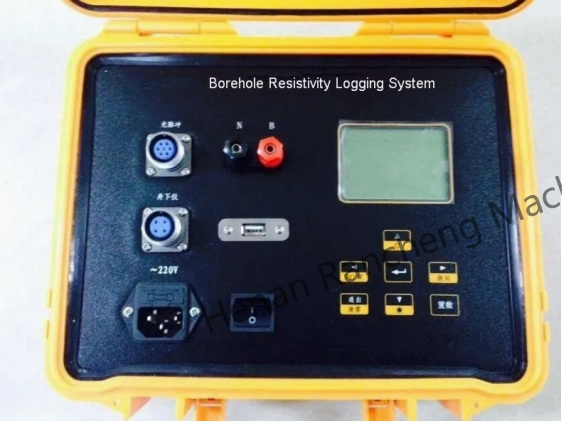

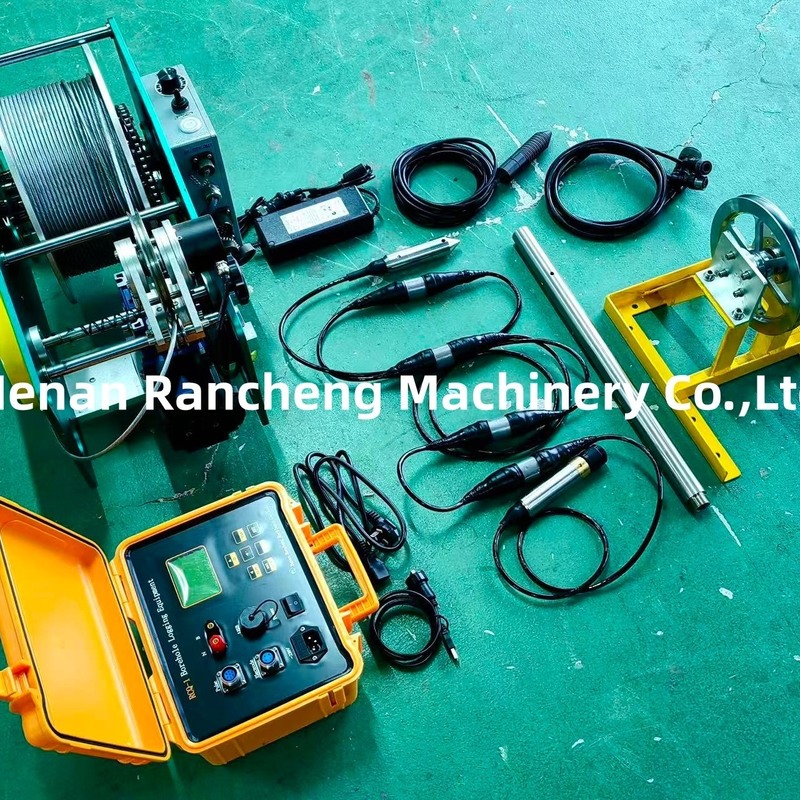

The RCQ-1 resistivity logging equipment is used to measure apparent resistivity in borehole formations. This surface instrument connects to a downhole electrode system and works with a PC to measure parameters such as apparent resistivity and natural potential. Our this RCQ-1 instrument uses an adaptive power supply scheme, delivering a wide range of AC square waves to the downhole formation. Both the supply current and voltage are measured simultaneously. This makes it easy to operate, has a wide measurement range, and is lightweight and reliable.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%

Product Features

Real-time data measurement and transmission for field operations

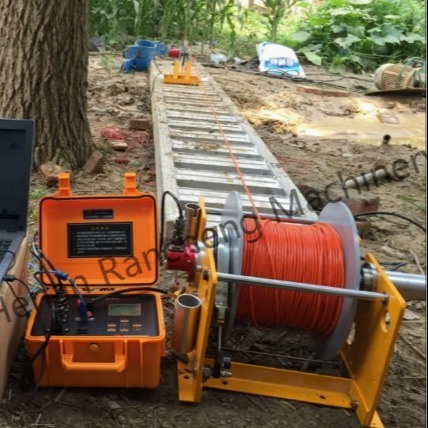

Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results
Professional software for fast curve plotting and data processing


Digital Logging System Specially Designed For The Convenience Of Field Work 0

Digital Logging System Specially Designed For The Convenience Of Field Work 1

Digital Logging System Specially Designed For The Convenience Of Field Work 2

Digital Logging System Specially Designed For The Convenience Of Field Work 3

Digital Logging System Specially Designed For The Convenience Of Field Work 4

Digital Logging System Specially Designed For The Convenience Of Field Work 5
