Hydraulic Water Drilling Machine For 150m Deep Farm Irrigation Wells
Product Description
The RCS200P drill rig boasts powerful drilling performance, reaching a maximum depth of 150 meters. Designed to handle a wide range of challenging projects, it offers a flexible adjustment range for hole diameters from 100 to 450 mm, allowing for flexible adjustments based on specific construction requirements and customized solutions for diverse scenarios. Whether drilling for residential water supply, meeting agricultural water needs, or drilling for industrial applications, this drill rig is reliable and consistently delivers results that exceed expectations.
Applications
This high-performance drill rig excels in a wide range of applications, including geothermal drilling, garden facility construction, landscaping, and borehole drilling. Its adjustable borehole diameter range extends from 70mm to 450mm, and its maximum drilling depth reaches 150 meters, ensuring access to necessary water sources and resources even in complex operations.
From small-scale projects like farmhouses to large-scale projects like factory construction, this drill rig's exceptional versatility allows it to easily meet diverse requirements. Its rugged design allows it to penetrate a wide range of ground formations, from sand and clay to soft rock, ensuring reliable operation. It adapts to diverse geological conditions and provides reliable support for a wide range of drilling projects.
Product Specifications
| Model of drilling machine |

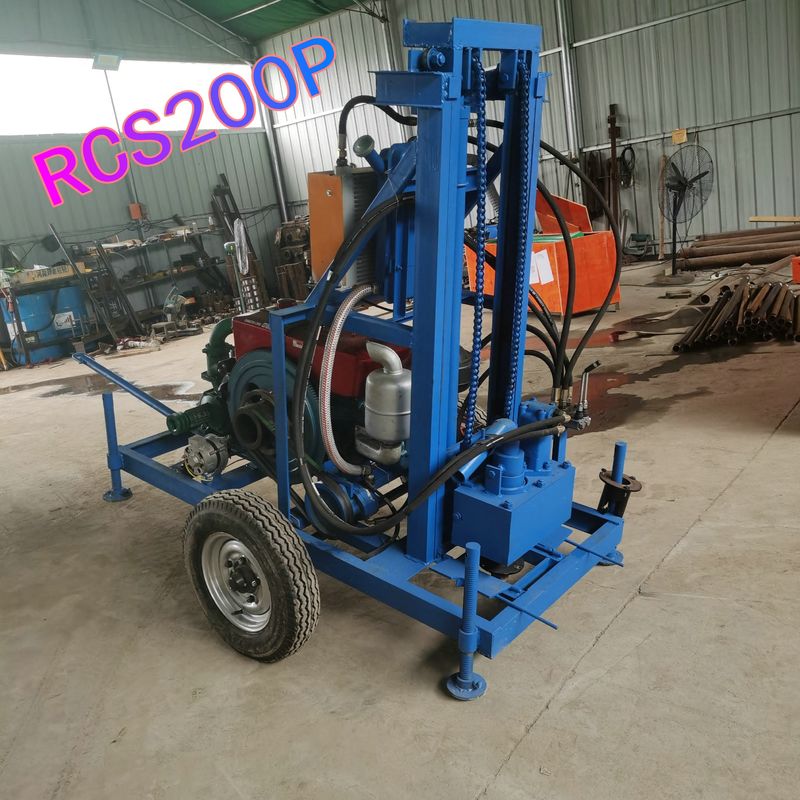

RCS200P |
| Drilling machine overall dimension(mm) |
1800*1000*2000 |
| Weight of Drilling machine (kg) |
1000 |
| Drill rod diameter (mm) |
Ø50 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
150 |
| Diesel Motor Power (Hp/kw) |
22/16.2 |
| Drilling method |
Percussive and rotating type |
| Drilling hole diameter(mm) |
Within Ø 450mm |
| Stroke distance (mm) |
2000 |
| Hosting capacity (kg) |
1500 |
Product Features
1. Light weight, energy saving;
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
Product Image
