Name: Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Casa > produtos > Máquina de perfuração de poços >

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

trailer type water well drilling rig

200m drilling depth borehole machine

mud pump air compressor drilling rig

Lugar de origem:

China

Marca:

RanCheng

Certificação:

CE, ISO 9001:2000

Número do modelo:

RCF220W

Contacte-nos

Pedido Umas citações

Detalhes do produto

nome:

perfuratriz hidráulica para poços de água

Torque máximo do rotor:

3400-4700Nm

Velocidade de rotação:

45-70r/min

Força de elevação do guincho:

1.5t

Destacar:

trailer type water well drilling rig

200m drilling depth borehole machine

mud pump air compressor drilling rig

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

Negociável

Detalhes da embalagem

Pode ser enviado por um contêiner de 20 "

Tempo de entrega

10-15 dias úteis

Termos de pagamento

T/T, Western Union

Habilidade da fonte

100 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Trailer Water Well Driling Rig With 132KW Cummins Diesel Engine For 600m Water Drilling

Obtenha o melhor preço

Vídeo

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

Obtenha o melhor preço

Vídeo

Hydraulic Tractor Mounted Water Well Drilling Machine 3400mm Feed Stroke

Obtenha o melhor preço

Vídeo

RCF220W A solução perfeita para máquina de perfuração de poços na indústria

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

Machine Introduction

Our RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. The rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast drilling speed, flexible movement and wide application range. Pneumatic water well drilling rigs are especially suitable for water extraction operations in mountainous areas and rock formations.

Made of high-quality materials, with a stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is more economical and durable, and has a high overall cost performance. Our water drilling rigs have received positive feedback from most customers and have been truly verified by the market.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Application

The rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. The rig is not only designed for water well drilling, but can also be used under various conditions depending on the purpose of the hole.

It is widely used in industrial and agricultural water conservancy projects, test wells and other exploration drillings. It is especially suitable for geothermal heating drilling, and is also suitable for various projects such as engineering foundation reinforcement and loose gravel rock drilling.

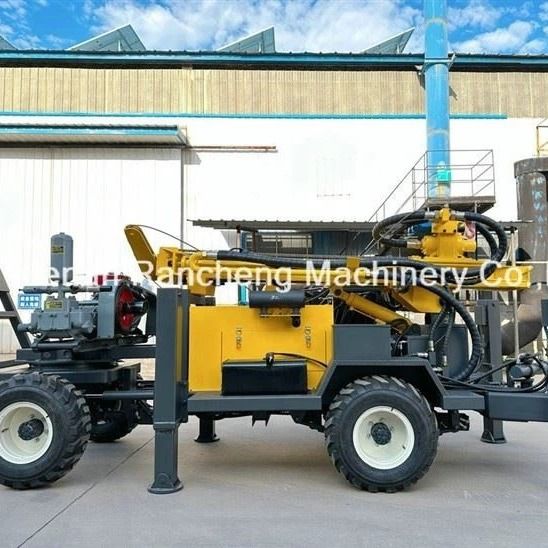

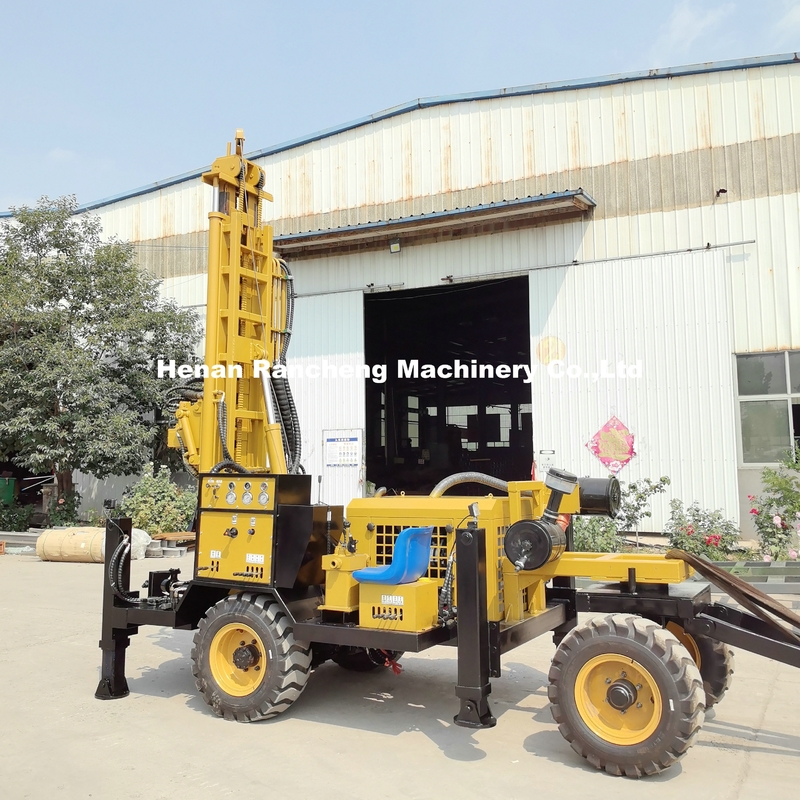

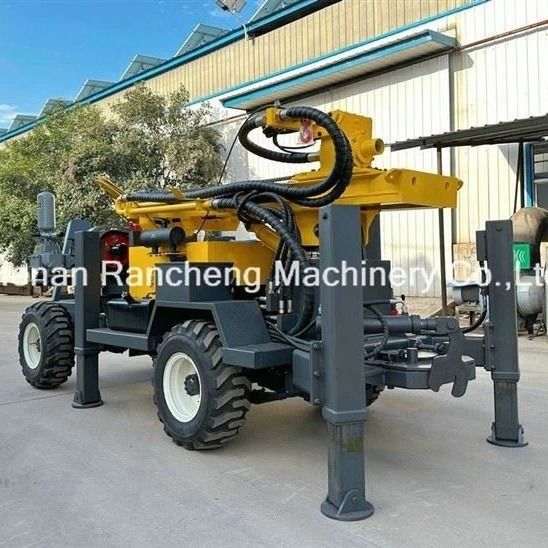

Machine Pictures
